USER MANUAL KH 5555 / 5556 WARM AND BUBBLY FOOT SPA BALANCE

Keep this manual for future reference and pass it on with the device to any future users!

Notes on Safety

To avoid life-threatening electric shocks:

• Make sure that the cable is not wet or damp while the appliance is in operation. Make sure to see that it does not get stuck, clamped or damaged in any way.
• If the cable or the electric plug is damaged, get it replaced by customer service, before you continue using the appliance.
• Unplug the appliance before filling it with water, replacing accessories or cleaning it.
• Use the appliance only in a dry areas, and not outdoors.

To prevent fire hazards and the risk of injury:

• Only use original accessories, which are meant for this appliance. Other parts may probably not meet the safety requirements.
• Do not allow children and elderly people to handle the appliance without supervision, since they may not always be able to assess potential hazards.
• Consult your doctor before using the foot bubble bath, if you suffer from phlebitis, inflamed varicose veins, water retention, or rash on the legs.
• Be careful if you are not sensitive to heat. You may not realise how hot the foot support plate gets.

To avoid damage to the appliance:

• Do not stand in or on the foot bubble bath. Use it only while seated.
• Do not use the foot bubble bath for more than 20 minutes. The appliance is not meant to be used continuously for long periods. Let the appliance cool sufficiently before using it again.
• Do not use any foam-producing bath additives. The appropriate bath additives for bubble baths are available with specialised dealers.

1. Intended use

This foot bubble bath is intended for personal, home use. Its function is only to bathe and massage the feet. It is not suitable for any other purpose. It should not and cannot be used in the medical/ therapeutic or commercial fields.

2. Delivery Contents

Foot bubble bath (Fig. A)

Replaceable insets for the foot support plate (Fig. B):

two roll massage insets
3 two acupressure insets

Replaceable massage plates for spot massage (Fig. C):

one finger massager
5 one acupressure massager
one roll massager

Operating manual and warranty card

GB

3. Technical Data

Rated voltage: 220-240 V / ~50 Hz
Power rating: 106 W

4. Functions of the foot bubble bath

This foot bubble bath has three distinct functions, which can be used in various permutations and combinations:

1. Bubbles: The air emerging from the air nozzles forms bubbles, which massage the feet in a gentle and pleasant manner.

2. Heat: The foot support plate gets heated and maintains a constant water temperature.

3. Massage: The foot plate with the small massage knobs vibrates and generates a pleasant massage effect.

5. Operation

Setting-up

Place the foot bubble bath on the floor in front of a chair.
Set the function switch on (OFF).

Placing the insets in the foot support plate

Select the insets for the footplate.
Use the roll massage insets for an additional spot massage of the foot soles.
Opt for the acupressure inset with the knobs for a gentle vibration massage.

Place the insets in the recesses meant for them in the footplate. The recess and the insets are marked with "L" for left and "R" for right.

Fitting the massage attachments

Select a massage attachment for spot massage.
Finger massager: for massaging the feet with 4 fingers.
Acupressure massager: for Shiatsu Massage (Asian massage with finger pressure) of the feet.
Roll massager: stimulating rolling massage of the foot soles to relax the feet.
Simply place the massage attachment in the opening on the elevated part between the two foot beds.

Fill water

Warning!

Danger of an electric shock!

• Fill the water tub only up to the "MAX" mark. Otherwise the water could overflow during the foot bubble bath.
• Connect the appliance to the mains only after you have filled water.
  Fill the water bath with warm or cold water.

Note: The purpose of the heating function is not to heat cold water. It is used in order to maintain the temperature of the water filled in the foot bath.

You can also use special bath additives. However, please refrain from using foam-producing bath additives.

GB

Switching on

Warning!

• Do not plug in the foot bubble bath when your feet are in the bath.

Insert the power plug in the socket.
Sit comfortably on a chair. But do not put your feet into the water yet!

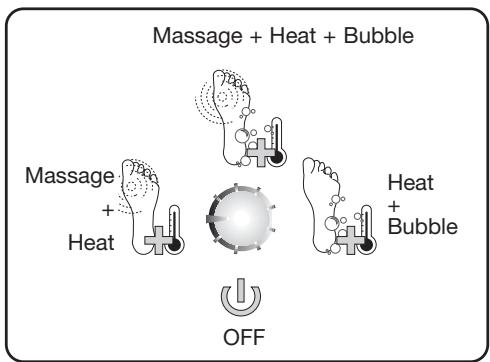

Adjust the switch to the desired combination.

You can the set the described functions in the following combinations:

Now place your feet into the water bath.

During the water bath you can alternately massage your foot soles on the massage attachments.

Warning: Do not exceed the mamimum operating time of 20 minutes!

After the foot bath

Switch off the appliance using the function switch and pull out the plug from the socket.
Carefully pour out the water.

Apply skin care oil to your feet.
Then rest for a while.

6. Cleaning

Warning!

• Unplug the appliance, before cleaning it.
• Let the appliance cool sufficiently before cleaning it.
• Never immerse the appliance in water or other liquids to clean it. Warning!
• Do not use any aggressive cleaning liquids or solvents. They could damage the surface.

Wipe the appliance from the inside and outside with a damp cloth.
Remove residues of bath additives with a special synthetic cleaner.

7. Disposal

Do not dispose off the appliance in the normal way with household waste. Inquire about the possibility of appropriate, environment friendly methods of disposal with the municipal authorities or your local government.

8. Warranty & Service

The warranty conditions and service centre address can be found in the enclosed warranty slip.
